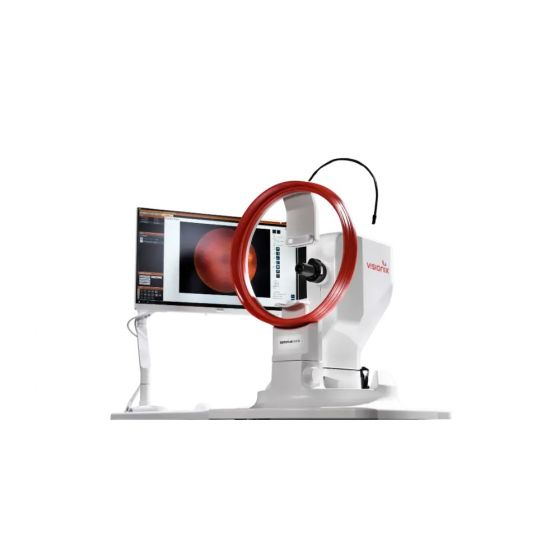

Ultra-high-speed FullRange® OCT
SOLIX is new technology built upon a proven foundation of high-speed Spectral Domain OCT. This FullRange® platform empowers practitioners to identify and manage numerous pathologies from the front of the eye to the back for a vastly superior diagnostic experience. SOLIX delivers multiple tools for a new generation of disease management that improves throughput and enables superior patient care.
SOLIX delivers pristine images of retinal structures with unprecedented views of the vitreous and choroid, enabling confident diagnosis and management of retinal pathologies – even in highly myopic patients. A precision OCTA scan that generates both RDB metrics and OCTA vessel density for comprehensive retinal analysis, which optimizes efficiency and quickly provides the clinical data your practice demands.
SOLIX delivers multiple tools for a new generation of disease management that improves throughput and enables superior patient care: anterior and posterior OCT, OCT angiography, fundus photography, external color photography, evaluation of the meibomian glands.
Ultra-fast spectral-domain (SD) technology produces a wide and deep field of view that does not compromise image resolution. Multi-volume merge technology averages four scan volumes to deliver high-density images with pristine clarity and 3D vessel rendering enables visualization of retinal vasculature and vascular connectivity.
SOLIX FullRange anterior imaging provides stunning views of the entire anterior chamber from the front surface of the cornea to the anterior surface of the lens (18 x 6.5 mm) .
The integrated fundus camera provides both internal and external colour photography, combined with the IR imaging this comprehensive anterior segment package expands the clinical possibilities to address a broad range of patients.
Quantify epithelial, stromal and total corneal thickness with the 10mm Corneal Layer Map, which features 16 meridians to fully cover the LRS transition zone. The Highlight Tool to further appreciate subtle changes in epithelial thickness for early kerataconus detection. The Change Analysis report measures changes in thickness between visits.
OCT topography provides a comprehensive assessment of BOTH the anterior and posterior surfaces of the cornea while being able to differentiate epithelial cells and stroma.
| Category | Specification |
|---|---|
| SOLIX CONFIGURATIONS | |
| - Solix FullRange OCT with AngioVue Expert | Posterior and Anterior OCT Imaging with Fully-Featured OCTA |
| **OCT IMAGING | POSTERIOR SEGMENT** |
| Axial Resolution | 5µm (in tissue) |
| Scan Speed | 120,000 A-scans/sec |
| Lateral Resolution | Up to 15µm (regular mode) Up to 6.25µm (FullRange mode) |
| Scan Depth | Up to 3 mm (regular lens) Up to 6.25mm (FullRange lens) |
| Scan Width | 3mm ~ 16mm |
| Dioptric Range | ±15D to ±0D |
| Pupil Size | ≥2.0 mm |
| OCTA IMAGING | |
| Retina Scan Sizes | 3x3mm, 6x6mm, 4x6mm, 9x9mm and 12x12mm |
| AngioVue Montage | Two 9x9mm scans, four 9x9mm scans |
| **OCT IMAGING | ANTERIOR SEGMENT** |
| Lateral Resolution | 18µm (regular CAM) (in tissue) |
| Scan Depth | Up to 3 mm (regular lens) Up to 6.25mm (FullRange lens) |
| Scan Length | 10mm ~ 16mm (FullRange) |
| Corneal Map | 10mm ~ 16mm meridians |
| FUNDUS PHOTOGRAPHY | |
| Resolution | 5MP |
| Scan Mode | Color, red-free*, blue pupil mode |
| Dioptric Range | ±15D to ±0D |
| Pupil Range | ≥4.0 mm (≥3.3 mm (small pupil mode)) |
| EXTERNAL PHOTOGRAPHY | |
| External Photograph | Color (white light flash) |
| External Infra-red (IR) Image | IR (940nm illumination) |
| ELECTRICAL AND PHYSICAL SPECIFICATIONS | |
| Weight | 95 kg (210 lbs) |
| Instrument Dimensions | 1027mm x 600mm x 610mm (W x D x H 59.4 x 31.5 x H 59 inches) |
| Electrical Rating | External and 15-point internal AC100V-240V |
| COMPUTER/NETWORKING SPECIFICATIONS | |
| Operating System | Windows 10 |
| CPU | Intel i7-8700 processor or above |
| RAM | 32GB, 4 DIMM |
| Hard Drive | Solid state drive 256GB for operating system Main drive 4TB |
| DICOM | DICOM MWL, DICOM storage |
| Networking | NetVue Pro Review Software - Up to 10 workstations |
| MEDICAL DEVICE CONFORMITY | |
| European Union: Class IIa Medical Device CE certified according to MDR 2017/745 by TÜV Rheinland (0197) FDA: 510(k) #K162616 Japan: MHLW Ordinance No. 169 EMC: IEC60601-1-2 |
